White-Box vs Black-Box Methods: A Comparative Study on Explaining DNNs

Abstract

As deep neural networks (DNNs) become increasingly integral to various fields, understanding their decision-making processes is paramount. Explainable Artificial Intelligence (XAI) methods, specifically feature importance techniques, are essential tools for enhancing the interpretability of these complex models. This paper presents a comparative study of white-box and black-box XAI methods, focusing on Grad-CAM (white-box) and LIME (black-box) as representatives of their respective categories. We explore the trade-offs between these methods in terms of interpretability, fidelity, and computational efficiency. By evaluating their performance using the Explanation Selectivity metric [3], this study provides insights into the suitability of these methods for object recognition tasks. The findings aim to guide the selection of appropriate XAI methods, contributing to the development of more transparent and trustworthy AI systems.

1. Introduction

1.1 Motivation and Practical Goal

As Artificial Intelligence (AI) models become increasingly complex, it becomes harder for humans to understand these systems. This is particularly true in fields like computer vision, where Deep Neural Networks (DNNs) often function as black-box models, leading even experts to lose track of their inner workings. This highlights the critical importance of developing methods to explain AI model decisions.

Explainable Artificial Intelligence (XAI) aims to make AI models more interpretable and understandable for humans. XAI seeks to bridge the gap between the opaque nature of traditional AI models and the need for transparency and accountability in decision-making processes. This is especially crucial in high-stakes domains such as healthcare, finance, and autonomous systems like self-driving cars, where decisions can significantly impact people's lives.

By identifying potential biases, errors, or areas for optimization, XAI can help improve AI models. Understanding how models make predictions allows us to better identify and address issues that may lead to inaccurate or unfair outcomes, potentially causing substantial harm. Additionally, XAI can facilitate better collaboration between humans and AI systems by providing explanations that enable humans to understand the rationale behind AI's suggestions, thereby making informed decisions.

Overall, XAI is essential for ensuring the responsible and safe use of AI systems. It is relevant across all areas of AI and will play a crucial role in ensuring transparency, accountability, and the integration of AI models into society as they continue to evolve.

1.2 Problem Statement

As AI models become more integrated into our daily lives, understanding the factors influencing their decisions becomes increasingly important. This need has driven researchers to focus on developing explainability methods for complex models. However, selecting an appropriate XAI method for a specific application remains a challenge.

Although there is a vast array of XAI methods available (see Related Work), this paper focuses specifically on Feature Importance methods due to their critical role in identifying which features are most influential in the model's predictions. This is essential for building trust in AI systems and facilitating informed decision-making. However, the selection of the appropriate Feature Importance method itself poses significant problems:

1. Interpretability vs. Fidelity: Balancing interpretability and fidelity is challenging. Interpretability ensures that users can understand the explanations, while fidelity ensures that the explanations accurately reflect the model's behavior. High interpretability often comes at the cost of fidelity and vice versa.
2. Black-Box vs. White-Box Methods: Deciding between black-box and white-box methods for Feature Importance is complex. Black-box methods, like LIME, do not require access to the model's internal structure but may lack the depth of explanation provided by white-box methods, like Grad-CAM, which utilize the model's internal gradients and architecture.
3. Local vs. Global Explanations: Feature Importance methods typically provide local explanations, focusing on specific predictions rather than the model's overall behavior. This localized focus can limit the broader understanding of the model's decision-making process.

Given these challenges, it is crucial to understand the tradeoffs involved in selecting the appropriate Feature Importance method. An analysis of black-box and white-box Feature Importance methods for local explanations can provide valuable insights into these trade-offs, thereby aiding in making well-informed decisions, and ultimately enhancing trust in AI models, as they become omnipresent in our lives.

1.3 Scientific Contributions

This paper addresses the overarching question: How can an appropriate explanation method (XAI method) be selected for a given application? To answer this, the paper explores two specific sub-questions:

• Based on which metrics and criteria can a method be selected?
• What are the advantages and disadvantages of white-box and black-box methods for the application of object recognition?

By examining these questions, this paper aims to provide a comprehensive comparison of white-box and black-box methods, highlighting their suitability and relevance for different use cases.

1.4 Focus

The goal of this paper is to compare white-box and black-box methods, specifically focusing on feature importance techniques. To simplify the comparison, one exemplary method from each category was chosen. Specifically, this paper compares LIME (Local Interpretable Model-Agnostic Explanations) [1] as an example of a black-box method and Grad-CAM (Gradient-weighted Class Activation Mapping) [2] as an example of a white-box method.

2 Background

2.1 Fundamentals of XAI

Explainable Artificial Intelligence (XAI) aims to make AI models more interpretable and understandable to humans. This is crucial for building trust, ensuring transparency, and facilitating decision-making in critical areas such as healthcare, finance, and autonomous systems. XAI techniques can be broadly categorized into two main approaches: white-box methods and black-box methods.

White-box methods rely on an understanding of the internal workings of the AI model to generate explanations. In contrast, black-box methods do not require prior knowledge of the model's internal structure. Instead, they treat the model as a black box and focus on analyzing its input-output behavior to generate explanations. This approach is particularly useful for complex models such as deep neural networks (DNNs), where understanding the internal workings is challenging or impractical.

2.1.1 White-Box Methods

White-box methods rely on an understanding of the internal workings of the AI model to generate explanations. This typically involves analyzing the model's architecture, weights, and activations of specific layers to extract interpretable insights. Examples of white-box techniques include gradient-based methods and layer-wise relevance propagation.

Gradient-based methods: These use the gradients of the output with respect to the input features to understand the importance of each feature. For example, Grad-CAM [2] generates visual explanations for CNNs by using gradient information from the last convolutional layer. This produces a heatmap highlighting important regions in the input image, helping to understand high-level visual features captured by deep CNNs.

Layer-wise relevance propagation: This technique decomposes the prediction by propagating relevance scores backward through the network layers, assigning importance scores to each input feature.

White-box methods have the advantage of high fidelity due to direct access to model parameters. This allows for detailed insights into the model's decision-making process. However, their applicability diminishes with the complexity of the model. As models like DNNs become more complex, understanding and analyzing their internal structures can be a significant drawback.

2.1.2 Black-Box Methods

In contrast, black-box methods do not require access to the internal structure of the model. Instead, they focus on analyzing the input-output behavior to generate explanations. Techniques in this category include perturbation-based methods and surrogate models.

Perturbation-based methods: These generate explanations by observing the changes in the model's output in response to perturbations in the input data. LIME [1] is a prominent example. LIME generates perturbed samples around the instance to be explained and fits an interpretable model to approximate the local decision boundary of the black-box model.

Surrogate models: These are simpler, interpretable models trained to approximate the predictions of the complex model within a local region around the instance being explained.

Black-box methods are highly versatile and can be applied to any black-box model without requiring internal access. This flexibility makes them suitable for a wide range of models and data types. However, these methods can be computationally intensive due to the need for multiple model evaluations. Additionally, the explanations they produce may vary depending on the locality considered, which can lead to less consistent results.

The choice between white-box and black-box methods depends on the specific AI model and application. White-box methods provide detailed, interpretable insights but may be less practical for complex models like DNNs. Black-box methods, while more flexible and applicable to any model, can be computationally expensive and may produce less consistent explanations. Understanding these trade-offs is crucial for selecting the appropriate XAI method for a given application, ensuring that the explanations are both accurate and useful for end-users.

2.1.3 Feature Importance

Feature importance methods play a critical role in XAI by identifying which features are most influential in the model's predictions. Both white-box and black-box methods can be used to assess feature importance. For example, Grad-CAM [2] identifies important regions in an image by analyzing gradient information, while LIME [1] approximates the local decision boundary to highlight influential features in the input data. These methods provide insights that help users understand the factors driving the model's decisions, which is essential for building trust and facilitating informed decision-making.

2.2 Grad-CAM: White-Box Method

Grad-CAM (Gradient-weighted Class Activation Mapping) aims to provide visual explanations for the decisions made by Convolutional Neural Networks (CNNs). By generating a heatmap that highlights important regions in the input image, Grad-CAM helps identify which parts of the image are most influential in the model's decision-making process. This method is particularly useful in applications like medical imaging, where understanding the model's focus can enhance trust and decision-making.

Grad-CAM leverages the gradients flowing into the last convolutional layer of a CNN to assign importance to the neurons for a specific class. By combining these gradients with the feature maps of the last convolutional layer, Grad-CAM produces a localization map that highlights the regions of the input image that are most relevant to the prediction. This approach uses the internal architecture of the model, making it a white-box method.

Detailed Steps:

1. Gradient Calculation:
   The first step in Grad-CAM is to compute the gradient of the score for a target class with respect to the feature map activations , where and are the width and height of the activations, respectively. This gradient, , indicates how much a small change in the activations of will affect the score of class .
2. Neuron Importance Weights Calculation:
   Next, the gradients are globally average-pooled to obtain the neuron importance weights . These weights represent the importance of each feature map for the target class :
   where is the number of pixels in the feature map.
3. Grad-CAM Heatmap Calculation:
   Finally, the class-discriminative localization map is computed using a weighted combination of the feature maps, followed by applying the Rectified Linear Unit (ReLU) to focus on the features that have a positive influence on the class score:
   This results in a heatmap that highlights the regions of the input image that are most important for the prediction. It is notable that the coarse heatmap is of the same size as the convolutional feature maps ( in the case of last convolutional layers of VGG [4] and AlexNet [5]).

E.g., in classifying handwritten digits (MNIST), Grad-CAM can show that certain areas of the image containing round shapes are more important for classifying the digit '0'. Grad-CAM is particularly advantageous for understanding high-level visual features captured by deep CNNs. By focusing on the gradients in the last convolutional layer, it provides interpretable explanations of the model's predictions. However, it requires a detailed understanding of the model architecture and the computation of gradients, which might not always be straightforward.

2.3 LIME: Black-Box Method

LIME (Local Interpretable Model-Agnostic Explanations) aims to provide interpretable explanations for the predictions of black-box models within a local region around the instance being explained by approximating the model locally with a simpler, interpretable model. The method is designed to be model-agnostic, meaning it can be applied to any classifier without requiring access to the model's internal structure. LIME is particularly valuable in scenarios where the underlying model is too complex to understand directly. The primary goal is to offer explanations that are faithful to the model's predictions, making them understandable to humans regardless of the features utilized by the model.

LIME approximates the complex decision function of the model f with a simpler, interpretable model g within a local region around the instance to be explained. This is achieved by generating a set of perturbed samples around the instance and observing the black-box model's predictions for these samples. The perturbed samples are weighted based on their proximity to the original instance, and an interpretable model is trained on these samples to approximate the local decision boundary of the black-box model. The resulting explanation highlights the features that are most influential for the prediction in the local neighborhood of the instance.

Detailed Steps:

1. Generation of Perturbed Samples:
   LIME begins by creating perturbed instances of the input data. For an image, this might involve altering superpixels (clusters of similar pixels) to generate new samples. These perturbed samples form a dataset Z around the original instance x.
2. Weighting the Samples:
   Each perturbed sample is weighted based on its proximity to the original instance. This is done using an exponential kernel defined on the L_2 distance:
   This weighting ensures that samples closer to the original instance have a greater influence on the explanation.
3. Training the Interpretable Model:
   LIME then trains a simple, interpretable model g to approximate the predictions of the complex model f within the local vicinity of x. The objective is to minimize the locality-aware loss L(f, g, π_x) while keeping the model g simple:
   Here, Ω(g) is a regularization term that penalizes model complexity to ensure interpretability.
4. Locally Weighted Square Loss:
   The locality-aware loss L(f, g, π_x) evaluates how accurately the interpretable model g captures the behavior of the black-box model f within the local neighborhood:
   By using this locally weighted loss function, the explanation model is trained to focus more on instances that are closer to the instance being explained, thus capturing the local decision boundary of the black-box model more effectively.

For image classification, LIME can explain why a particular image was classified as a dog by highlighting the superpixels (image segments) that are most influential for the prediction. By generating and analyzing perturbed versions of the image, LIME might reveal that the shape of the ears and fur patterns are critical features for the classification.

LIME answers the question of feature importance differently than Grad-CAM. While Grad-CAM uses the internal gradients of the model to highlight important regions, LIME approximates the model locally and uses perturbed samples to generate explanations. This difference in approach allows LIME to be applied to any black-box model without requiring access to its internal structure. However, the computational cost of generating multiple model evaluations can be high, and the quality of the explanation depends on the fidelity of the local approximation, which might vary based on the choice of perturbations and the locality considered.

2.4 Evaluation of Feature Importance Methods

The challenge of comparing explanation techniques and objectively evaluating their quality lies in the nature of DNN predictions. Often, these predictions might only be interpretable by experts. Consequently, an explanation technique itself might also require expert knowledge for interpretation. To address this, we can introduce quantitative metrics that provide a more objective assessment of explanation quality.

Explanation Selectivity, as described in [3], is a quantitative metric used to assess the quality of an explanation method for feature importance in DNNs. This metric measures how well the explanation method identifies the features that have the strongest impact on the DNN's prediction.

The method works by iteratively removing features based on their assigned relevance scores (provided by the explanation method) and tracking how much the DNN's prediction value drops after removing each feature. A sharp drop in prediction value after removing a feature indicates high selectivity, meaning the explanation method effectively identified a feature with a strong influence on the prediction.

3 Evaluation of LIME and GradCAM

3.1 Relevance of the Use Case

Object recognition was selected as a relevant use case for this study. The images used represent real-world objects often involved in automatic classification systems in domains such as healthcare, finance, and autonomous systems like self-driving cars, where decisions can significantly impact people's lives. Understanding which features drive these decisions is critical to enhancing trust in AI models.

3.2 Experimental Setup

In this experiment, 20 distinct images were tested on two models, AlexNet [5] and ResNet50, using the explanation methods LIME and GradCAM, over ten runs: 20 × 2 × 2 × 10 = 800 test instances in total. Explanation Selectivity, measured by the AUC score, was employed as the comparison metric. The AUC scores were computed by iteratively removing the most relevant features as identified by the explainers.

All images were correctly classified by both models before the experiments. A varied selection of images, combined with ten runs per test instance, helped stabilize the results and examine the explainers' stability. Two different classification models with distinct architectures were selected to assess how the explainers perform across different model types.

3.3 Experimental Results

The AUC values displayed in Figure 1 and summarized in Table 1 demonstrate that LIME outperforms GradCAM in terms of the average AUC score across the entire sample set. Specifically, on ResNet50, LIME achieves a notably lower AUC score (approximately 11.85) compared to GradCAM (approximately 14.79), indicating superior Explanation Selectivity. On AlexNet, the difference between LIME and GradCAM is marginal, with GradCAM scoring approximately 10.77, while LIME scores 10.69, suggesting that both methods perform similarly in this context.

4 Discussion

4.1 Interpretation of Results

The experimental results provided valuable insights into the relative strengths and weaknesses of the two XAI methods—LIME and GradCAM—when applied to object recognition tasks. From the results, it is evident that LIME outperformed GradCAM on average AUC scores, particularly on ResNet50, where LIME achieved significantly lower AUC values. This suggests that LIME is better at focusing on the most relevant parts of an image, offering a higher degree of Explanation Selectivity across models. However, this benefit comes at the cost of stability, as LIME's performance varies across runs due to its black-box nature.

In contrast, GradCAM displayed greater consistency and robustness across multiple runs, as seen in its minimal variance in AUC scores. This stability is a key strength, particularly in applications where repeatability is critical. While LIME's average performance is better, GradCAM's deterministic behavior can foster greater trust in high-stakes environments where stable and repeatable explanations are paramount.

Acknowledgments

I sincerely thank my supervisor, Dr. Gesina Schwalbe, for her unwavering guidance and support throughout this research project. I am deeply grateful for her valuable feedback, thoughtful suggestions, and the immense amount of time she dedicated to ensuring we truly understood the subject. This Project has reignited my enthusiasm for Artificial Intelligence and provided me with profound insights into the world of professional research. This project would not have been possible without her dedication and contributions.

Appendix: Application of Explanation Selectivity

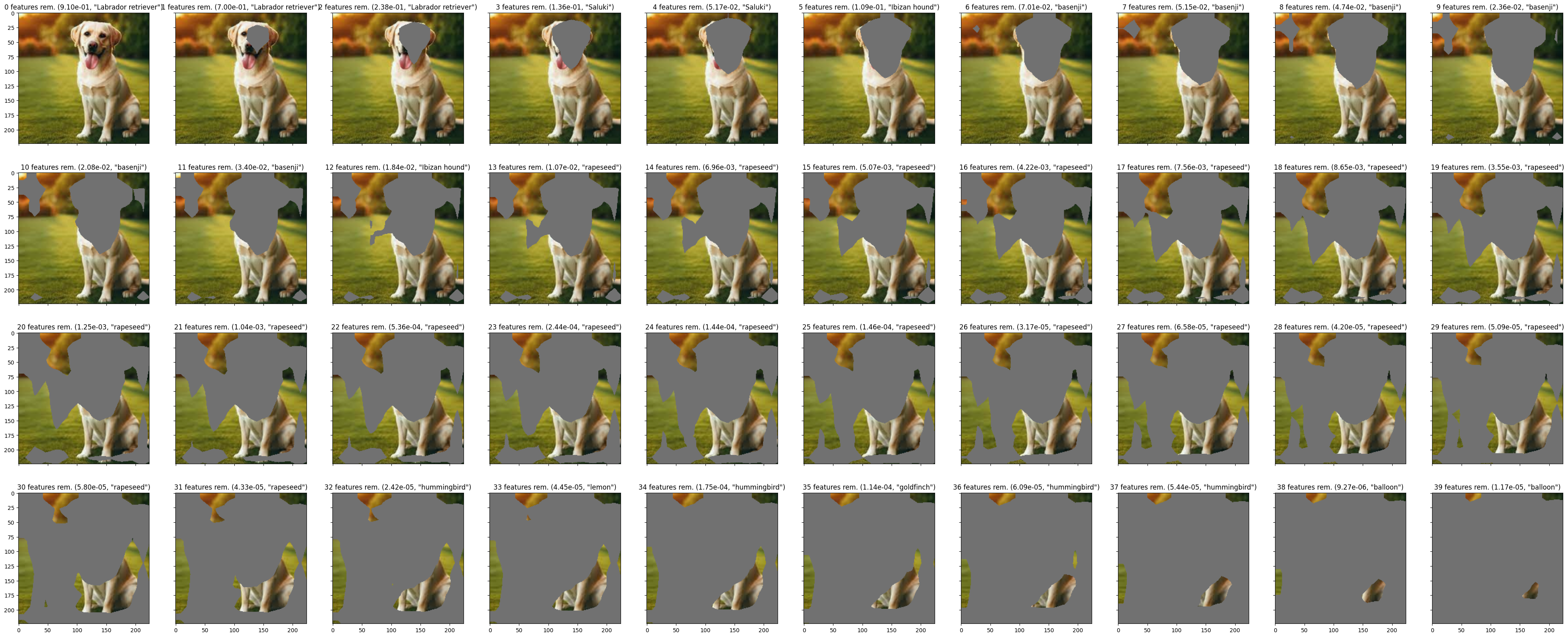

Figure 3 illustrates the feature removal process for GradCAM on AlexNet using the labrador test image. The heatmap generated by GradCAM highlights the dog's face as the most important feature, which is consistent with the model's classification.

References

1. Ribeiro, M.T., Singh, S. & Guestrin, C. 2016. "Why Should I Trust You?": Explaining the Predictions of Any Classifier.
2. Selvaraju, R. R. et al. 2019. Grad-CAM: Visual Explanations from Deep Networks.
3. Montavon, G. et al. 2018. Methods for interpreting and understanding deep neural networks.
4. Simonyan, K. & Zisserman, A. 2015. Very deep convolutional networks for large-scale image recognition.
5. Krizhevsky, A., Sutskever, I., & Hinton, G. E. 2012. ImageNet classification with deep convolutional neural networks.
